China Micro Switch Manufacturers Suppliers Factory - Customized Micro Switch Price

Your Professional Micro Switch Supplier

Shanghai Yongxing Electronic Switch Co., LTD., is a company specializing in the field of electronic switches. Our products are widely used in electronics, electrical instruments, communications, audio and video, household appliances, medical equipment and other industries.

Why Choose Us

Company Certificate

We have got ISO9001:2000 、ISO9001:2008 Quality System Certification.Most of our products have certified by the authentic certification authorities,home and aboraod,such as CQC、CE 、UL、ENEC etc.

Innovation

Adhering to the principle of "quality oriented, customer first", we constantly pursue excellence and innovation.To provide customers with more high-performance and reliable electronic switch products with technological innovation and excellent manufacturing capabilities.

Customized services

In order to meet the individual needs of customers, the company can provide customized product services, we have independent development and manufacturing capabilities, from product design to manufacturing, we can follow up the whole process to ensure that the products are produced in accordance with customer requirements.

Professional Team

We have a professional technical team, including a number of technical talents and experienced engineers. We pay attention to talent training, through internal training and external learning opportunities, we have cultivated a group of technical backbone. Their extensive experience and expertise in product development and innovation provide strong support for our company's continued development and product updates.

Benefits of Micro Switches

01/

Compact Size

Micro switches are designed to be small and compact, making them suitable for applications where space is limited or miniaturization is required.

02/

Reliability

Micro switches are known for their durability and reliability, ensuring consistent performance over a large number of switching cycles.

03/

Precision

Many types of micro switches, such as precision and snap-action switches, offer exceptional accuracy and repeatability, ensuring precise switching action.

04/

Versatility

Micro switches are available in various types and configurations, allowing them to be used in a wide range of applications and operating conditions.

05/

Low Power Consumption

Micro switches require minimal power to operate, making them energy-efficient and suitable for battery-powered devices or applications where power consumption is a concern.

06/

Cost-Effective

Micro switches are generally inexpensive, making them a cost-effective solution for various applications, especially in high-volume production.

Types of Micro Switch

Hinge Roller Lever
A hinge roller lever switch normally includes a roller that connects to its hinged lever. So this switch is applicable for high-speed camera operation.

Rotating Operation
These types of switches are common with low-torque actuators. So, this kind of switch is applicable for recognizing light objects such as paper currency.

Pin Plunger
The pin plunger micro switch is perfect for direct, short strokes. Thus, it can be used to detect high-precision positions directly In addition, this kind of switch requires a consistent stopper because its overtravel has the shortest actuator.

Leaf Spring
The leaf spring micro switch includes a more significant stroke due to the powerful leaf spring. So, you can use it for low-speed cams or cylinder drives.

Spring Pin Plunger
As compared to a pin plunger, a spring pin plunger has a longer overtravel. But you can also utilize this switch for similar applications. When using this switch, make sure the load is on the center of the plunger and this is due to the plunger’s diameter being somewhat larger.

Panel Mount Plunger
As compared to other types of switches, this microswitch has the biggest overtravel. This switch can be mounted to a panel through a nut and hexagonal locknut.

Customized Process Of Micro Switch

R&D Process From Design To Sample
The process of customizing waterproof micro switches usually starts with the customer’s request, and the supplier designs and develops prototypes based on the request. During the design process, customers can participate in discussions to ensure that the final product meets the application requirements. After the sample is produced, the supplier will provide samples for customers to test.

Sample Provision
After confirming the demand, we will make a preliminary sample according to the demand and give it to the customer for testing. This includes the mold opening, production, and testing of the micro switch. Then we will modify the model according to the customer’s actual application needs.

Mass Production And Delivery Cycle
Once the sample passes the test and is confirmed, the supplier will enter the mass production stage. During the mass production process, the customer needs to coordinate the delivery time and production progress with the supplier.

Customs Clearance And Shipment
After the product is produced, the logistics will be arranged to be sent to the customs clearance port as soon as possible. The supplier will generally prepare customs clearance materials in advance and pay attention to the progress of the goods at all times so that they can be shipped as soon as possible.

Core Features of Micro Switch

Feature 1

Understanding the dimensions of the switch The size is essential when choosing a micro switch. Switch size is directly related to its current range, travel, and operating force.

Feature 2

Understanding electrical requirements Micro switches typically break current from 5mA/5VDC to 25A/250VAC. The micro switch product line offers a range of products from low energy to power load electrical for various applications.

Feature 3

Consider environmental conditions. You need to choose a sealed switch with a wide operating temperature range for harsh environmental applications.

Feature 4

Defining the working life requirements Choosing switches that meet various international electrical requirements can help you simplify product design for different regions.

Application of Micro Switch

Automotive Industry

Micro switches are used in automotive applications such as door sensors, hood switches, seat belt sensors, and gear shift position sensors.

Consumer Electronics

Micro switches are found in various consumer electronic devices, such as appliances, toys, and electronic gadgets, where they are used for power switching, position sensing, and safety interlocks.

Industrial Automation

In industrial automation systems, micro switches are employed as limit switches, position sensors, and safety interlocks in machinery, robots, and automated systems.

Medical Equipment

The precision and reliability of micro switches make them suitable for use in medical equipment, such as surgical instruments, hospital beds, and diagnostic devices.

Aerospace and Defense

Micro switches are used in aerospace and defense applications, such as aircraft control systems, missile guidance systems, and other critical applications that require high reliability and precision.

Security Systems

Reed micro switches are often used in security systems, such as door and window sensors, where they can detect the presence of a magnetic field without physical contact.

Instrumentation

Precision micro switches are used in various instrumentation applications, such as measurement equipment, scientific instruments, and control systems, where accurate and repeatable switching is crucial.

FAQ

Q: How Do We Ensure The Quality Of Custom Micro Switches?

A: All of our products go through a rigorous quality control process and testing to ensure that each custom switch meets industry standards.

Q: What is the function of a micro switch?

A: This is an electromechanical device. This switch is also known as a miniature snap-action switch. This switch is also known as the end switch or position switch. The function of a micro switch is to switch an electrical circuit ON/OFF or to close a circuit automatically because of a mechanical load.

Q: What is the principle of microswitch?

A: The working principle of a micro switch is that when it touches an object, the contacts change position. Thus, the principle of operation of this switch is mainly as follows. The normally closed pin of the circuit is opened and the normally open pin is closed when you press the lever of the switch.

Q: What is the structure of a microswitch?

A: Inside a typical microswitch are three main components: an actuator, a set of stationary contacts, and a movable contact. The actuator is a lever or button designed to respond to physical pressure or movement and is externally accessible.

Q: What is microswitch technology?

A: A micro switch is a small and versatile electrical switch that typically operates on a spring mechanism and is commonly used in a wide range of electronic devices. These switches use very little force to activate and have a very precise switching action, making them ideal for use in various applications.

Q: What is the lifespan of a microswitch?

A: The mechanical life of micro switches ranges from 30,000 to 10 million times, generally 100,000, 200,000, 500,000, 1 million, 3 million, 5 million, and 8 million times. Generally, beryllium bronze, tin bronze, and stainless steel wire are used as reeds.

Q: How do micro switches fail?

A: There are several reasons why microswitches can fail. The most common is an electro-mechanical failure, which occurs when the switch's contacts become worn down by heat, moisture, and other factors. Electrical failures also happen if too much current flows through a circuit that uses microswitches in its design.

Q: Are microswitches reliable?

A: General specifications of micro switches
Mechanical life* is about 500,000 to 1,000,000 times. Electrical life* is 200,000 times.

As one of the most professional micro switch manufacturers and in China, we're featured by quality products and good price. Please rest assured to buy customized micro switch from our factory.

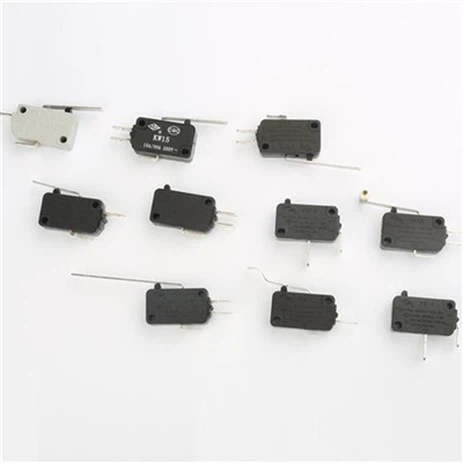

16 Amp Micro Switch, micro switch 16a 250vac, spdt kw10
