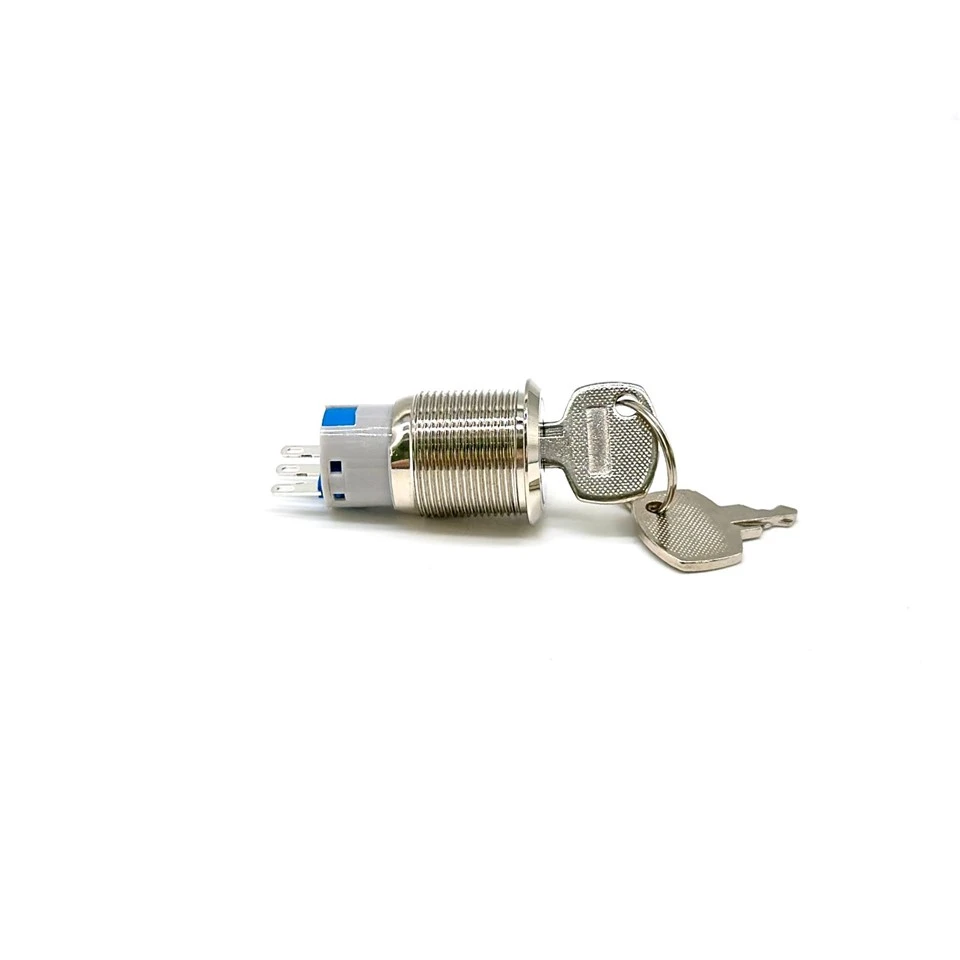

Stainless Steel Rotary Selector Switch With Power Lock

Max.Rating Current&Voltage(Resistive Load): 3A 250V AC

Contact Resistance (Initial Value): ≤50mΩ

Insulation Resistance (Normal): ≥100MQ

Withstand voltage (Normal): 1500VAC 50Hz 1min

Working ambient temperature:-25℃~55℃

Protection grade: IP65 (above installation panel)

Shell material: stainless steel, brass

Certification: CQC, CE

1. Metal shell, sturdy and durable
The shell is made of 304 stainless steel, with excellent dustproof, rustproof and corrosion-resistant performance, effectively resisting acid and alkali environment and mechanical shock.

The high hardness shell fully protects the internal circuitry and prolongs the service life, which is suitable for industrial, outdoor and other complex scenarios.

2.IP65 waterproof sealing design
Equipped with high-quality silicone sealing ring and reinforced nut ring, it closely fits the structural gaps and prevents water, oil and dust from seeping in.
IP65 protection certification, no fear of rain or humid environment, to protect the long-term stable operation of the equipment.

3. Silver-plated contacts, efficient conductivity
The key contacts are silver-plated, increasing conductivity by 30%, reducing resistance loss and risk of heat generation.
Super 200,000 times electrical life, contact oxidation resistance, signal transmission is more stable.

4. Multi-specification, flexible installation
Provides 12mm, 16mm, 19mm, 22mm mounting apertures, compatible with standard panel aperture requirements.
Compact design (diameter 22mm and below), space-saving, support horizontal/vertical multi-angle installation.

• Quality Assurance: The whole process is strictly controlled and passes multiple tests of durability, waterproofness and flame retardancy.
• Scenario coverage: from precision instruments to heavy industrial equipment, one lock is multi-functional, adapting to global standards.
• Long-term cost optimization: High-life design reduces maintenance frequency, silver-plated contacts reduce energy consumption, and the overall cost performance is leading.
• Comprehensive after-sales service: It has a one-year shelf life, and you can contact after-sales personnel at any time to resolve any issues.

12/16/19/22mm Stainless Steel Waterproof Rotary Selector Switch With Power Lock widely used in household appliances, control cabinets, automation equipment, automotive electronics, communication equipment and instrumentation, etc.

• Industrial equipment: control cabinet power locks, emergency stop switches for automated production lines, heavy machinery operating panels.
• Transportation: automotive electronic system control, ship instrument panel, engineering vehicle power management.
• Household appliances: outdoor lighting controller, water pump switch, high-temperature kitchen appliances gear adjustment.
• Public facilities: communication base station equipment, power meter box, security system power lock.
• Special environment: chemical workshop, mining machinery, wet basement and other high-protection requirements.
